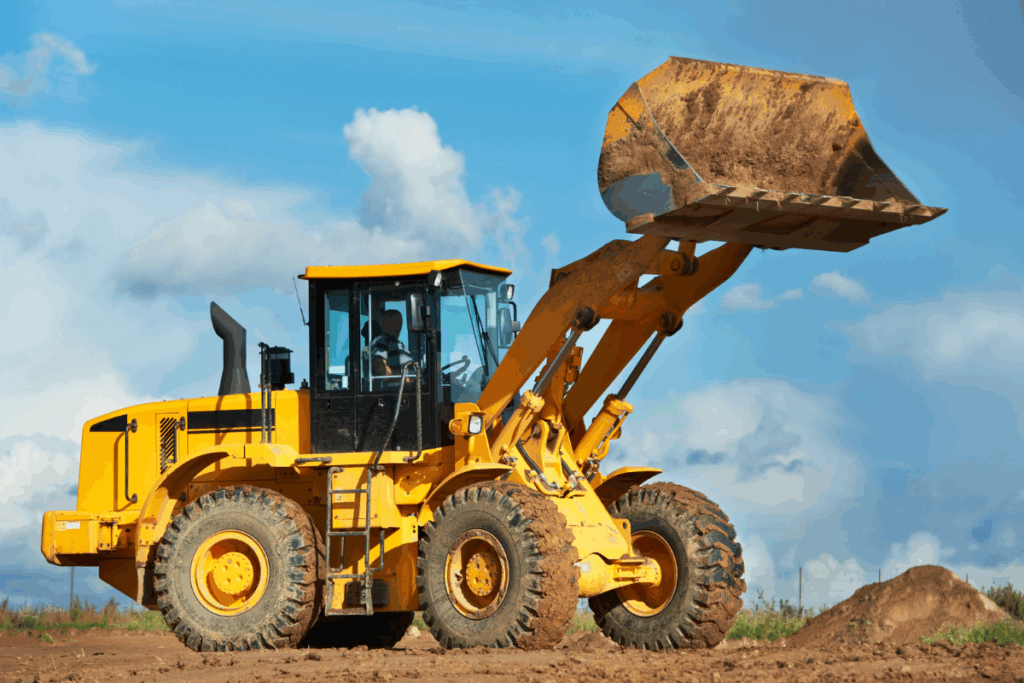

Construction vehicles are operated under some of the harshest conditions imaginable. They’re expected to perform reliably on steep grades, through dense mud, and under heavy payloads, putting their components through stress levels that would impair everyday vehicles.
Arrow Off-Road engineers understand the specific expectations of construction vehicle OEMs and ensure that each component we fabricate, machine, and assemble meets their stringent quality standards. Every aspect of the part, from material selection and precision machining to coating and finishing, must be considered to deliver products that perform safely and efficiently in their final application.
In this month’s blog, we examine the various build aspects of three critical components of off-road construction vehicles to demonstrate our commitment to quality.
Engine And Hydraulic Systems
No off-road vehicle can help its operator carry out tasks without a reliable industrial-grade engine and hydraulic system components and subassemblies. These systems are responsible for converting mechanical energy into the immense lifting, pushing, and digging power that defines a vehicle’s capability.
The challenge for fabricators lies in achieving the required strength and sealing integrity while minimizing weight and maximizing service life.
The first step to reaching these aims is to select materials that retain structural integrity under continuous vibration and high-pressure load cycles. For example, cylinder heads, housings, and brackets are typically fabricated from high-strength, low-alloy steels or ductile iron due to their excellent fatigue resistance and thermal stability. Hydraulic cylinders and manifolds require precision-machined alloy steels with hard chrome or nickel plating, as these materials offer corrosion resistance and low friction in humid environments filled with abrasive particulates.
Tight tolerances also play a crucial role in the fabrication of these components, particularly in hydraulic systems that require micron-level consistency to maintain pressure and prevent leakage. Even a minor deviation can lead to a loss of hydraulic efficiency or seal failure.
Another essential consideration is thermal and contamination control. Hydraulic components are constantly subject to extreme temperature swings and abrasive dust in the field, accelerating part wear. Fabricators can help extend product life by integrating specialized filtration housings, coated fittings, and sealed joint designs into the product. Additionally, applying advanced coatings can provide an extra layer of protection against damage caused by prolonged exposure to water and hydraulic fluid.
Operator Cabin And Controls
Whereas the engine is designed to deliver power, operator cab components and subassemblies are built more for comfort, usability, and safety. However, they must also be fabricated for rough conditions, with a structure built to withstand torsional stress and rollover impact without excessive flexing.
The materials of choice for this application include high-strength tubular steel and reinforced aluminum that offer strong stiffness-to-weight ratio, which is essential for maintaining visibility and maneuverability without compromising occupant protection. Precision welders must pay close attention to creating consistent weld penetration and distortion-free joints that can survive continuous vibration during regular use.
Within the cabin, components such as mounting brackets, pedal linkages, and joystick components and subassemblies require tight fits and repeatable tolerances, allowing operators to manage force with accuracy, even in rough conditions. Noise and vibration are managed through advanced welding techniques on panel assemblies and mounting points. This is combined with the incorporation of precision-bent panels, strategically placed reinforcements, and damping materials that absorb vibration and minimize resonance frequencies, which can cause operator fatigue.
Surface finishing on in-cabin components is also critical to enhancing durability while ensuring a smooth tactile experience for the operator.
Externally, advanced powder coatings and e-coating solutions are typically applied to create a uniform, chip-resistant barrier against humidity, road salt, and ultraviolet exposure. When paired with proper seam sealing and drainage, these treatments help ensure the cabin maintains structural and aesthetic integrity over years of field use.
Read More: Material Selection Strategies For Your Fabrication Projects
Mobility System
A reliable mobility system is another critical part of the construction vehicle. Composed of the frame, suspension, axles, and drivetrain components, this system transfers engine power into traction and movement, maintaining alignment across uneven terrain while surviving constant dynamic loading.
Chassis frames are typically fabricated from high-tensile steels or specialized alloys designed to absorb stress without deformation. Precision bending and robotic welding techniques are used to achieve structural uniformity across large assemblies, reducing the risk of fatigue cracking under repetitive flexing.
Suspension and drivetrain components, such as axle housings, hubs, and differential casings, are machined to micron-level precision to maintain alignment and ensure efficient power transmission.
Shafts and gears are surface-treated to resist wear caused by high torque loads and contaminated environments. Sealed bearing systems and reinforced mounting brackets are also installed to combat the effects of dust, gravel, and other contaminants while helping to maintain alignment and extend the system’s service life.
Read More: Inside AOR’s Complete Fabrication Process
